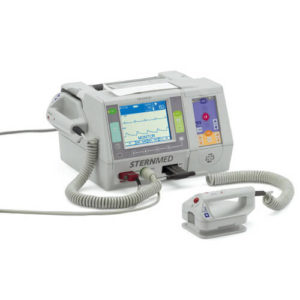

Sternmed DEXER 10 Defibrillator Monitor

Features

  •  Biphasic technology
  •  Truncated Exponential Waveform adapted to patient’s impedance
  •  Simple and intuitive only 2 buttons operation
  •  Portable and lightweight
  •  Control of the defibrillator and the printer from the paddles
  •  Integrated pediatric paddles
  •  Operates from the mains (AC), from a vehicle battery (DC) and with its internal battery
  •  Auto-test when switched on and during operation


Brand: .

Product Description

3[1]

  • VT/VF alarm
  • Visual and audible alarms

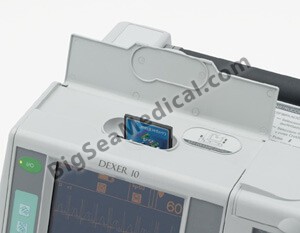

Flash memory card

7[1]

Selector cover for manual and AED

65[1]

Options

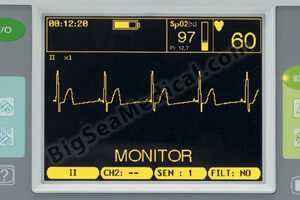

“EL” electroluminescent screen

4[1]

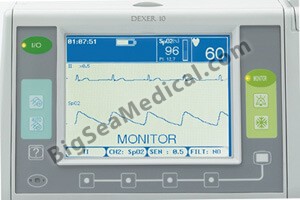

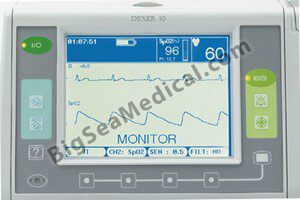

Pulsioximetry

2[1]

Pacemaker

2[1]

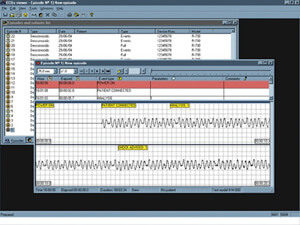

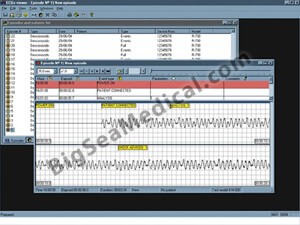

“ECG Visor” software

10[1]

Accessories

4-lead patient cable
5-lead patient cable (standard)
10-lead patient cable
Internal paddles

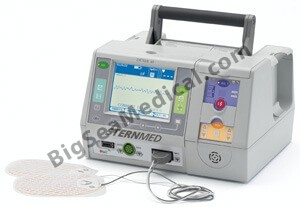

Multifunction electrodes
Carrying case

“ECG Visor” software

Dexer 10

Technical Specifications Dexer 10

Sternmed Defibrillator Monitor

MONITOR

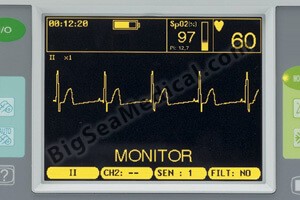

ECG monitoring

4,5 or 10 lead patient cable, paddles or multifunction disposable electrodes

Sensitivity

0.5-1-2-4cm./mV

Heart rate



0 to 300 ppm

Configurable alarms

Bandwidth

0.67 – 40 Hz or 0.05 – 150 Hz (diagnostic)

Common mode rejection

100 dB at 50/60 Hz

SCREEN



Size

115×86 mm. (1/4 VGA)

Resolution

320 x 240 points

Sweep rate

25mm/sec

Display time

4.5 sec x 2

DEFIBRILLATOR



Waveform

Biphasic truncated exponential adapted to the patient’s impedance

Manual

Energy

1 -2 – 3 -5 -7 -9 -10 -15 -20 -30 -50 -70 -100 -125 -150 -200 J (nominal at a resistance of 50 ohms)

Synchronized cardio version

Discharge before 60 ms after the detection of the R wave

Paddle options



Reusable external adult  paddles (pediatric paddles integrated)

Malfunction disposable electrodes



Reusable internal paddles (optional)

AED



 Defibrillable rhythm detection algorithm

200 J

 Max energy level



Charging time

less than 5 sec. at 200 J with a new and fully charged battery

PACEMAKER (Optional)



Stimulation mode

On Demand and Fixed with selectable frequency and current.

Frequency

30 to 180 ppm

Current

0 to 150 mA

Waveform

Type

Rectangular constant current

Duration

40 ms

Refractory period

340 ms from 30 to 80 ppm

240 ms from 85 to 180 ppm

RECORDER



Paper

50 MM thermal

Speed

10, 25 and 50 mm/sec

Operating mode

Manual, automatic, 8 second delay

DATA STORAGE (Optional)



Compact Flash memory card

minimum capacity 16 MB

Information

Continuous ECG signal and events

Audio (optional only in automatic mode)

100 last events with the associated ECG signal

SpO2 (Optional)



Saturation



Range

1-100%

Perfusion index

0.02 % to 20 %

Accuracy during no motion conditions

70% – 100 % : + 2 digits

Accuracy during motion conditions

70% – 100%: + 3 digits

Pulse Frequency

Range

25-140 ppm

Accuracy during no motion conditions

+ 2 ppm

Accuracy during no motion conditions

+ 5 ppm

Representation of waveform with auto-gain









Technical Specifications Dexer 10

Sternmed Defibrillator Monitor

SUPPLY



NiMH battery (rechargeable)

Autonomy

More than 130 discharges at 200 J

Monitoring

More than 150 minutes

Monitoring plus Pacemaker (60 ppm and 60mA)

More than 120 minutes

Charge status and low battery indicator

Charging time:

~3 hours

AC

100-240 VAC, 50/ 60 Hz

DC

10-16 VDC

GENERAL







Dimensions

Width

310 mm

Height

195 mm

Length

249 mm

Weight



Unit  with disposable electrodes, SpO2, ECG cable (10 leads) without  battery



5.5 kg

External reusable paddles

0.95 Kg

Battery

0.8 Kg

Operating Temperature



0 to 50 °C

Relative humidity



10 to 95% (not condensed)

Shocks

IEC 60068-2-27

Vibration

IEC 60068-2-64
